MG-Series Meat Grinders

Our MG-Series Meat Grinders specially produced for efficient mincing of meat in butcher’s shop, grocery stores, hotels-restaurants, and meat processing. We produce our meat grinder machine fully in line with CE Directives. We offer different sizes, capacity, motor power, and feature options according to our customers’ needs.

We use VOLT brand motors in MG-12, MG-22, and MG-32 and GAMAK brand in MG-42. Water quenching and surface grinding processes have been applied to the gearbox steel gear group. All of our meat grinders have transparent oil cover, so controlling of oil level is very easy. The oil of gearbox number 140 gear oil. The main body produced from 304 stainless steel and it 1.5mm or 2mm.

Bottom chassis of our MG-Series Meat Grinders are produced from 304 stainless and it is 2mm laser cutting. The gearbox shaft produced with 420 stainless steel. It has a protection system against abrasion on the mat over time.

CATEGORY CODE: P-MG

MG-Series Properties

Removable Groove System

We offer a removable groove system feature as an option. With removable groove, you can easily remove and clean the groove system. So, you can easily keep the machine hygienic. With removable groove, you can easily remove and clean the groove system. So, you can easily keep the machine hygienic.

Optional Cooling System

The cooling system an optional feature for all of our products. It designed as demountable. So, it can mount to our products easily. Without a cooling system, the heat of meat which processed with any kind of grinder will increase 2° to 4° celsius. With a cooling system, meat’s heat won’t increase. And the ph level of meat does not change while grinding. You can mount the cooling system later, or you can choose meat grinders with a cooling system.

Demountable Sinew Seperation

Also, we offer a demountable sinew separation system for MG-32 and MG-42 models. With the sinew separation settings tool, the rate of sinew in the meat can be adjusted.

We use L&W and Zico brand plates and blades in the sinew separation system.

MG-Series Models

We listed our MG-Series Models below. Please get in touch with us for any details that you need.

MG-12 MEAT GRINDER

MG-12 Meat Grinder model has a plate with a 72mm diameter. It completely produced with stainless steel. It can grind 150 kg meat per hour.

CATEGORY CODE:  P-MG-12

MG-12 MG-Series Meat Grinders

Technical Details

Voltage: 220 V
Ampere: 1,6A
Frequency: 50 Hz
Used Fuse Current: 16 A
Capacity Kg/Hour: 150 Kg
Motor Power/Kw: 0,55 Kw
Net Weight: 34
Dimensions of the Machine: 212*320*555 mm

MG-22 MEAT GRINDER

MG-22 Meat Grinder model has a plate with an 82mm diameter. It completely produced with stainless steel. It can grind 400 kg meat per hour. Also, it contains hand protection kit.

CATEGORY CODE:  P-MG-22

MG-22 MG-Series Meat Grinders

Technical Details

Voltage: 400 V
Ampere: 1,6A
Frequency: 50 Hz
Used Fuse Current: 16 A
Capacity Kg/Hour: 400 Kg
Motor Power/Kw: 1,5 Kw
Net Weight: 50
Dimensions of the Machine: 230*400*735 mm

MG-32 MEAT GRINDER

MG-32 Meat Grinder model has a plate with a 92mm diameter. It completely produced with stainless steel. It contains stainless hand protection.

CATEGORY CODE:  P-MG-32

MG-32 MG-Series Meat Grinders

Technical Details

Voltage: 400 V
Ampere: 5,2A
Frequency: 50 Hz
Used Fuse Current: 16 A
Capacity Kg/Hour: 600 Kg
Motor Power/Kw: 3 Kw
Net Weight: 65
Dimensions of the Machine: 270*432*820 mm

MG-32 MEAT GRINDER WITH SINEW SEPARATION

MG-32 Meat Grinder with Sinew Separation model is an advanced model of MG-32 Meat Grinder. In addition to MG-32 standard model, it contains cooling system and sinew separation feature. The cooling system has digital controllers and it easy to use. You can adjust the sinew rate of the meat with sinew setting tool. Also, it contains hand protection kit.

CATEGORY CODE:  P-MG-32-SS

MG-32 Sinew Separation MG-Series Meat Grinders

Technical Details

Voltage: 400 V
Ampere: 5,2A
Frequency: 50 Hz
Used Fuse Current: 16 A
Capacity Kg/Hour: 400 Kg
Motor Power/Kw: 1,5 Kw
Net Weight: 65
Dimensions of the Machine: 270*432*820 mm

MG-42 COUNTERTOP MEAT GRINDER

MG-42 Countertop Meat Grinder model has a plate with a 132mm diameter. It contains hand protection kit. It can grind 1000kg meat per hour.

CATEGORY CODE:  P-MG-42-C

MG-42-C MG-Series Meat Grinders

Technical Details

Voltage: 400 V
Ampere: 5,2A
Frequency: 50 Hz
Used Fuse Current: 16 A
Capacity Kg/Hour: 1200 Kg
Motor Power/Kw: 4 kW
Net Weight: 175
Dimensions of the Machine: 378*510*1095 mm

MG-42 MEAT GRINDER WITH PORTION

MG-42 Meat Grinder With Portioning model provides portioning to the product right after grinding. Portioning value can be adjusted with a precision of 10gr. It can grind 1000kg meat per hour.

CATEGORY CODE:  P-MG-42-P

MG-42-P MG-Series Meat Grinders

Technical Details

Voltage: 400 V
Ampere: 5,2A
Frequency: 50 Hz
Used Fuse Current: 16 A
Capacity Kg/Hour: 1200 Kg
Motor Power/Kw: 4 kW
Net Weight: 175
Dimensions of the Machine: 1390*590*610 mm

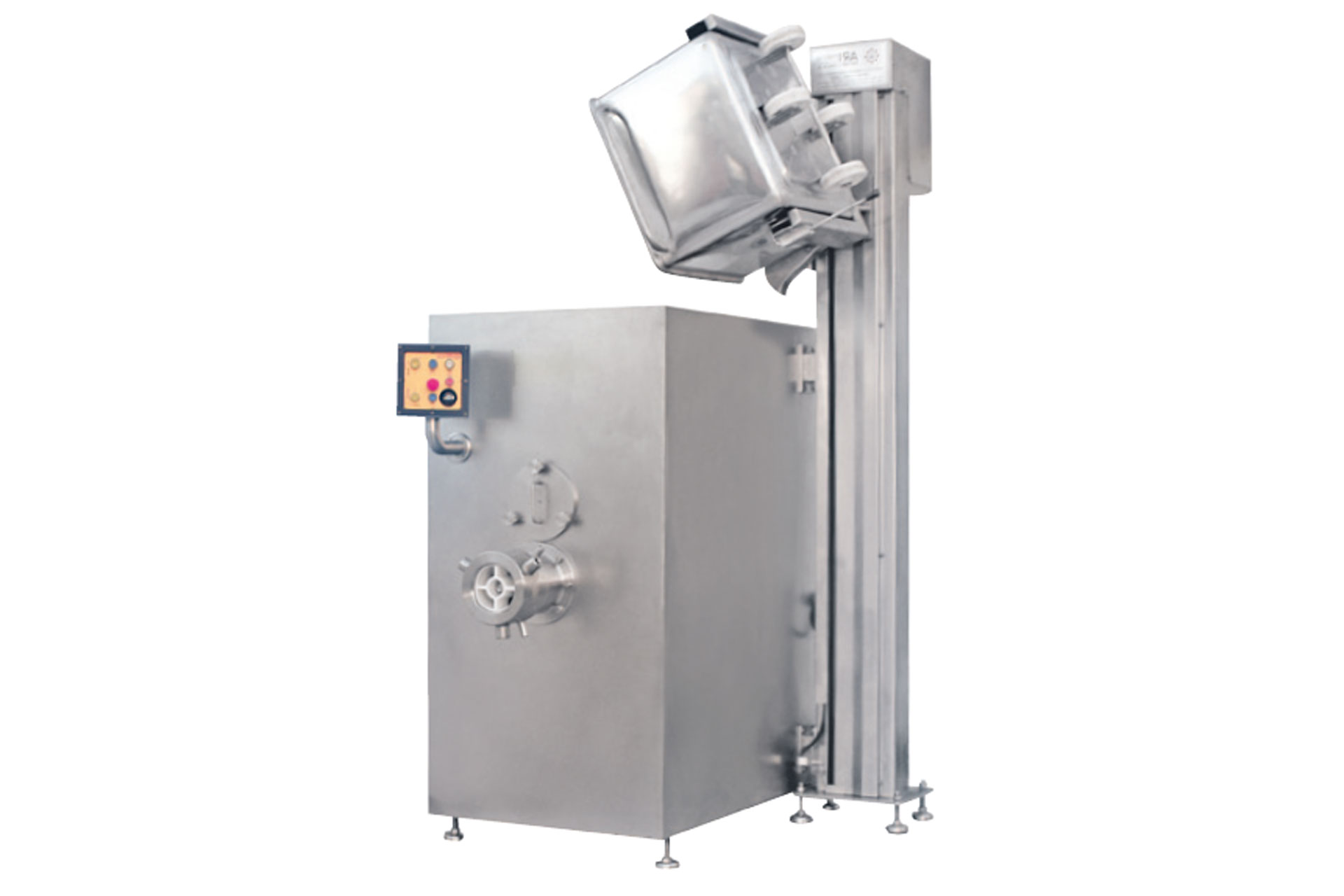

MG-160 MEAT GRINDER MACHINE

MG-160 Meat Grinder Machine used particularly for meat grinding process in sausage, hotdog production, and meat processing sector. It works with 3 phase electricity. In addition to other models, it can also work with 1 cutter, 2 plates, and 2 blades.

CATEGORY CODE:  P-MG-160

MG-160 MG-Series Meat Grinders

Technical Details

Voltage: 380/400 V
Ampere: 40A
Frequency: 50/60 Hz
Used Fuse Current: 16 A
Capacity Kg/Hour: 1500-1900 Kg
Motor Power/kW: 1,5 kW
Net Weight: 1250
Dimensions of the Machine: 2120*2810*2010 mm

Other Meat Grinders

Also, Check Out Our Other Series Of Meat Grinders.

MG-Series Meat Grinders can handle all of the meat-grinding processes that you need.
