HPM-Series Hamburger Patty Mixer

We specially designed our HPM-Series Hamburger Patty Mixer Machine to mixing mince and ingredients to prepare hamburger patty. They produced fully in line with CE directives. We use 304 stainless steel to provide high quality on our machines. Also, we add palettes, which can rotate forward and backward, to our HPM-Series Hamburger Patty Mixer machines.

CATEGORY CODE: P-HPM

HPM-Series Properties

Easy-To-Use

We specially designed these machines for easy usage.

Homogeneous Mixtures

We specially design to provide Homogeneous Mixtures in every operation with our HPM-Series products. We use palettes can rotate forward and backward, so mixtures will be homogeneous.

Quick Processes

Our machines can handle quickly all the processes that you need.

HPM-Series Models

We listed our HPM-Series Models below. Please get in touch with us for any details that you need.

HPM-20 Hamburger Patty Mixer

HPM-20 Hamburger Patty Mixer machine contains 3 palettes which can rotate forward or backward. The duration of the process takes 10-15 minutes. It has 20 lt capacity. Also, it contains an engine with 0,75 kW. Vacuuming, heating and cooling system optional features for this machine.

CATEGORY CODE:  P-HPM-20

HPM-20 HPM-Series

Technical Details

Width: 739 mm
Height: 536 mm
Length: 337 mm
RPM: 74

HPM-40 Hamburger Patty Mixer

HPM-20 Hamburger Patty Mixer machine contains 4 palettes which can rotate forward or backward. The duration of the process takes 10-15 minutes. It has 40 lt capacity. Also, it contains an engine with 1,1 kW. Vacuuming, heating and cooling system optional features for this machine.

CATEGORY CODE:  P-HPM-40

HPM-40 HPM-Series

Technical Details

Width: 865 mm
Height: 838 mm
Length: 420 mm
RPM: 62

HPM-60 Hamburger Patty Mixer

HPM-60 Hamburger Patty Mixer machine contains 4 palettes which can rotate forward or backward. It has 60 lt capacity.  The duration of the process takes 10-15 minutes. Vacuuming, heating and cooling system optional features for this machine. Also, it has two cover locks.

CATEGORY CODE:  P-HPM-60

HPM-60 HPM-Series

Technical Details

Voltage: 380-400 V
Frequency: 50 Hz
Motor Power: 2,2 kW
Blade Shaft Power: 22kW
Dimensions of the Machine: 2045*1495*1445 mm

HPM-80 Hamburger Patty Mixer

HPM-80 Hamburger Patty Mixer machine comes with a stainless or flexible cover. It has 80 lt capacity. Its engine has 2.2 kW power. We add 4 palettes in this machine.

CATEGORY CODE:  P-HPM-80

HPM-80 HPM-Series

Technical Details

Width: 1044 mm
Height: 912 mm
Length: 508 mm
RPM: 63

HPM-120 Hamburger Patty Mixer

HPM-120 Hamburger Patty Mixer machine has 85 kg capacity. It contains a 2.2 kW engine. Also, it prevents any dangerous situation with its safety switch.

CATEGORY CODE:  P-HPM-120

HPM-120 HPM-Series

Technical Details

Width: 1295 mm
Height: 1475 mm
Length: 605 mm

HPM-300 Hamburger Patty Mixer

HPM-300 Hamburger Patty Mixer machine contains a touchscreen with IP67 protection. It can easily control with touchscreen and joysticks. It has a 5.5 kW engine. Its top cover has a safety system. The bottom drain cover and top cover contains a hydraulic system.

CATEGORY CODE:  P-HPM-300

HPM-300 HPM-Series

Technical Details

Width: 2995 mm
Height: 2705 mm
Length: 1350 mm

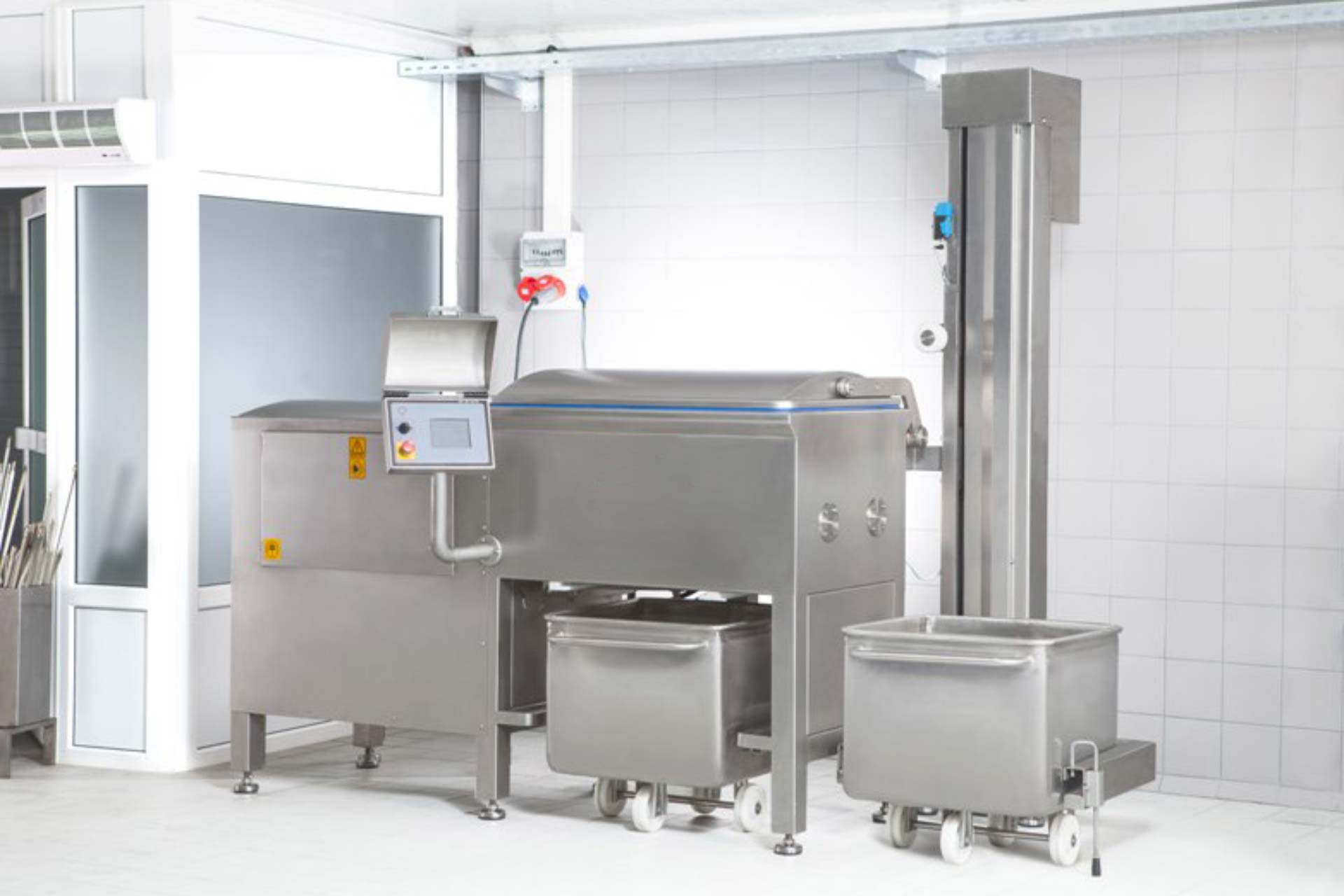

HPM-1000 Hamburger Patty Mixer

HPM-1000 Hamburger Patty Mixer machine has 600/800 kg capacity per operation. It contains an automatic hydraulic cover system for opening and closing the cover. You can set stopping time according to duration or temperature. It can also be controlled manually with joysticks and touchscreen. It has a 16-26 kW engine with double speed ( 700-1400 rpm).

CATEGORY CODE:  P-HPM-1000

HPM-1000 HPM-Series

Technical Details

Width: 3677 mm
Height: 2705 mm
Length: 1350 mm

HPM-1700 Hamburger Patty Mixer

HPM-1700 Hamburger Patty Mixer machine contains a touchscreen and joysticks to manually control the machine. You can set stopping time according to duration or temperature. It has a 16-26 kW engine with double speed ( 750-1500 rpm). It has 1000 kg capacity per operation.

CATEGORY CODE:  P-HPM-1700

HPM-1700 HPM-Series

Other Hamburger Patty Machines

Also, Check Out Our Other Series Of Hamburger Patty Machines.

HPM-Series machines prepare homogeneus mixes for hamburger patty.
